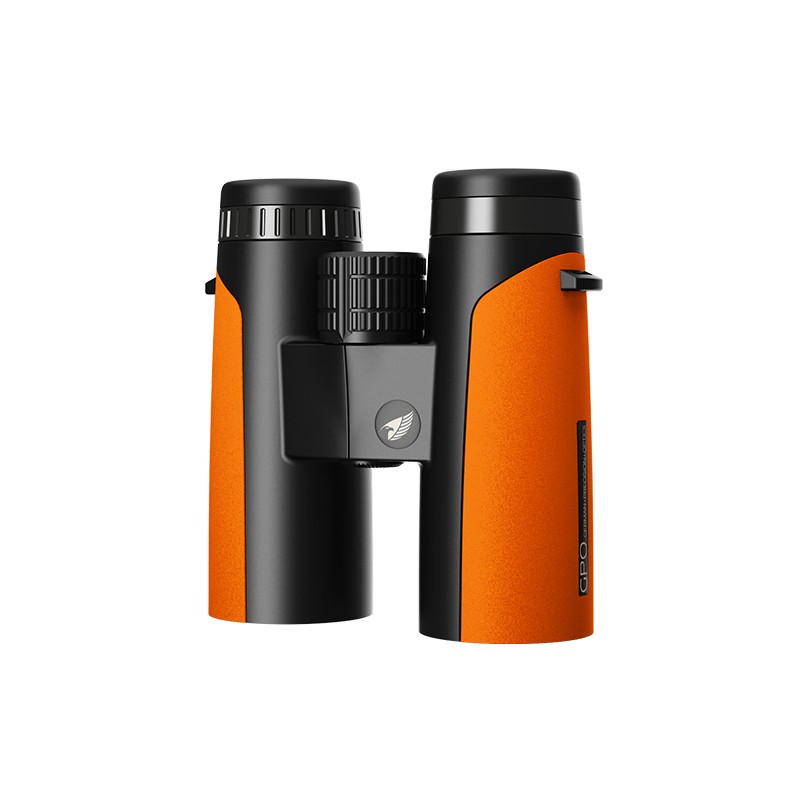

PASSION™ ED binoculars offer the perfect entry into the world of high-quality observation optics with an unbeatable price-performance ratio. The elegant and ergonomic design has been combined with the use of high-quality materials. The entire housing is made of pure magnesium. Thanks to ED lenses, multi-layer coatings and adapted optics, they offer a large field of view, high edge-to-edge sharpness and transmission values as well as narrow close focus. Their robustness and optical performance make them unique in their class.
Technical features :
Prism type . Schmidt-Pechan
Magnification . 8x
Field of view (FOV) at 1.000y . 428
Field of view (FOV) at 1.000m . 143
Objective diameter (mm) Effective diameter 42
Ocular diameter (mm) Effective diameter 23,7
Exit pupil diameter (mm) Measurement of the pupilary ocular beam 5,25
Eye Relief (inches) From the last optical surface 0,7
Eye Relief (mm) From the last optical surface 18
Housing Main body and hinge magnesium
Close focus (feet) Shortest focal distance 5,9
Close focus (meters) Shortest focal distance 1,8
Inter pupilary distance (IPD) Center pupil to center pupil measurement 56 – 75
Dioptric compensation range . -2,5/+2,5
Waterproof Mbars 100
Transmission Daylight ISO 14490-5:2005 90%
Height (inches) Without covers 2,26
Height (mm) Without covers 55
Weight (ounces) Without covers 26,1
Weight (grams) Without covers 740
Lentgh (inches) At outside diameter 5,4
Lentgh (mm) At outside diameter 138
Width (inches) Fully extended 5
Width (mm) Fully extended 127
Accessories included with the purchase . instruction manual, cleaning cloth, hard
case, neoprene neck strap, hard case
strap, objective covers, ocular covers
PASSION™ ED binoculars offer the perfect entry into the world of high-quality observation optics with an unbeatable price-performance ratio. The elegant and ergonomic design has been combined with the use of high-quality materials. The entire housing is made of pure magnesium. Thanks to ED lenses, multi-layer coatings and adapted optics, they offer a large field of view, high edge-to-edge sharpness and transmission values as well as narrow close focus. Their robustness and optical performance make them unique in their class.
Technical features :
| Prism type | . | Schmidt-Pechan |
| Magnification | . | 8x |
| Field of view (FOV) at 1.000y | . | 428 |
| Field of view (FOV) at 1.000m | . | 143 |
| Objective diameter (mm) | Effective diameter | 42 |
| Ocular diameter (mm) | Effective diameter | 23,7 |
| Exit pupil diameter (mm) | Measurement of the pupilary ocular beam | 5,25 |
| Eye Relief (inches) | From the last optical surface | 0,7 |
| Eye Relief (mm) | From the last optical surface | 18 |
| Housing | Main body and hinge | magnesium |
| Close focus (feet) | Shortest focal distance | 5,9 |
| Close focus (meters) | Shortest focal distance | 1,8 |
| Inter pupilary distance (IPD) | Center pupil to center pupil measurement | 56 – 75 |
| Dioptric compensation range | . | -2,5/+2,5 |
| Waterproof | Mbars | 100 |
| Transmission Daylight | ISO 14490-5:2005 | 90% |
| Height (inches) | Without covers | 2,26 |
| Height (mm) | Without covers | 55 |
| Weight (ounces) | Without covers | 26,1 |
| Weight (grams) | Without covers | 740 |
| Lentgh (inches) | At outside diameter | 5,4 |
| Lentgh (mm) | At outside diameter | 138 |
| Width (inches) | Fully extended | 5 |
| Width (mm) | Fully extended | 127 |
| Accessories included with the purchase | . | instruction manual, cleaning cloth, hard
case, neoprene neck strap, hard case
strap, objective covers, ocular covers |
