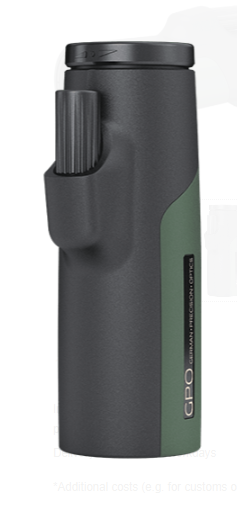

Handy format, great performance The PASSION™ MONO 10×36 HD is the perfect companion when maximum compactness is required. Despite its pocket size and low weight of just 240 g, the monocular impresses with its outstanding optical imaging performance and elegant, ergonomic design. Thanks to HD glass, the GPObright™ multi-coating and the BAK4 roof prism, the small monocular offers a particularly brilliant, sharp, true-color and, with 90% transmission, very bright image reproduction. The large field of view ensures a steady image. In conjunction with the ergonomic focus wheel on the top, it can be operated perfectly with just one hand. Thanks to the nitrogenfilled magnesium housing, it is both waterproof and robust. With its adjustable eye cup, it can also be used optimally by people who wear glasses (including sunglasses).
Prism Type BAK/ Roof
Magnification 10x
Field of view at 1000y 325
Field of view at 1000m 108
Objective diameter (mm) 36
Ocular diameter (mm) .
Exit pupil diameter (mm) 3,93
Eye Relief (inches) 0,57
Eye Relief (mm) 14,5
Housing Magnesium
Close focus (feet) 8,2
Close focus (m) 2,5
Dioptric compensation range +/- 3
Nitrogen filling/ waterproof 1m/ 30min
Transmission Daylight 90%
Heigth (inches) 2,36
Heigth (mm) 60
Length (inches) 4,96
Length (mm) 126
Width (inches) 1,77
Width (mm) 45
Weigth (ounces) 8,47
Weigth (grams) 240
Accessories included with
this purchase Instruction manual, warranty card, cleaning cloth,
hand strap, carrying case, ocular cover, lens cover
Handy format, great performance The PASSION™ MONO 10×36 HD is the perfect companion when maximum compactness is required. Despite its pocket size and low weight of just 240 g, the monocular impresses with its outstanding optical imaging performance and elegant, ergonomic design. Thanks to HD glass, the GPObright™ multi-coating and the BAK4 roof prism, the small monocular offers a particularly brilliant, sharp, true-color and, with 90% transmission, very bright image reproduction. The large field of view ensures a steady image. In conjunction with the ergonomic focus wheel on the top, it can be operated perfectly with just one hand. Thanks to the nitrogenfilled magnesium housing, it is both waterproof and robust. With its adjustable eye cup, it can also be used optimally by people who wear glasses (including sunglasses).
| Prism Type | BAK/ Roof |
| Magnification | 10x |
| Field of view at 1000y | 325 |
| Field of view at 1000m | 108 |
| Objective diameter (mm) | 36 |
| Ocular diameter (mm) | . |
| Exit pupil diameter (mm) | 3,93 |
| Eye Relief (inches) | 0,57 |
| Eye Relief (mm) | 14,5 |
| Housing | Magnesium |
| Close focus (feet) | 8,2 |
| Close focus (m) | 2,5 |
| Dioptric compensation range | +/- 3 |
| Nitrogen filling/ waterproof | 1m/ 30min |
| Transmission Daylight | 90% |
| Heigth (inches) | 2,36 |
| Heigth (mm) | 60 |
| Length (inches) | 4,96 |
| Length (mm) | 126 |
| Width (inches) | 1,77 |
| Width (mm) | 45 |
| Weigth (ounces) | 8,47 |
| Weigth (grams) | 240 |
Accessories included with
this purchase | Instruction manual, warranty card, cleaning cloth,
hand strap, carrying case, ocular cover, lens cover |
